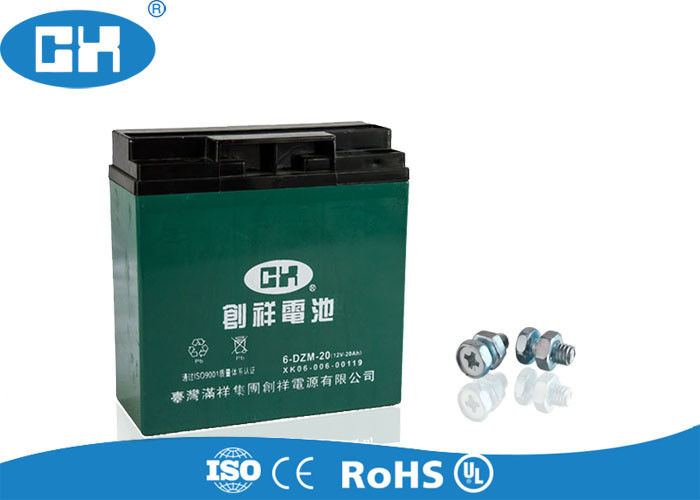

Rechargeable Electric Motorcycle Battery Green 181 * 77 * 170mm Long Service Life

Rechargeable Electric Motorcycle Battery Green 181 * 77 * 170mm Long Service Life

Rechargeable Electric Motorcycle Battery Green 181 * 77 * 170mm Long Service Life
Rechargeable Electric Motorcycle Battery Green 181 * 77 * 170mm Long Service Life

Large Image :  Rechargeable Electric Motorcycle Battery Green 181 * 77 * 170mm Long Service Life Get Best Price

Product Details:

Place of Origin: Chongqing China
Brand Name: Chuangxiang
Certification: ISO9001 CE ROHS UL
Model Number: 6-DMZ-20

Payment & Shipping Terms:

Minimum Order Quantity: 500
Packaging Details: One piece motorcycle battery packed in one color inner box, 10 boxes packed in one carton.
Delivery Time: 30-35 working days
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 300000pcs per month
Detailed Product Description
Type: Electric Battery Color: Green
Size: 181*77*170mm Voltage: 12v
Capacity: 20Ah Useage: Motorcycle / Scooter /three Wheel Motorcycle
Weight: 7kg Warranty: 12 Months
Certificate: ISO9001/CE/ROHS/UL MOQ: 500pcs
High Light:

12v 12ah scooter battery

,

electric motorcycle battery pack

Varieties of Lead Acid Batteries

Over the years battery manufacturers have introduced a range of additives such as Calcium, Antimony and Selenium to improve various battery performance parameters. For the same reason, different cell and battery constructions have been developed to optimise various aspects of battery performance.



Lead Calcium Batteries

Lead acid batteries with electrodes modified by the addition of Calcium providing the following advantages:



1, More resistant to corrosion, overcharging, gassing, water usage, and self-discharge, all of which shorten battery life.

2, Larger electrolyte reserve area above the plates.

3, Higher Cold Cranking Amp ratings.

4, Little or No maintenance.



Lead Antimony Batteries

Lead acid batteries with electrodes modified by the addition of Antimony providing the following advantages:



1, Improved mechanical strength of electrodes - important for EV and deep discharge applications

2, Reduced internal heat and water loss due to gassing, however the water loss is still greater than the equivalent loss in Lead Calcium batteries.

3, Longer service life than Calcium batteries.

4, Easier to recharge when completely discharged.

5, Lower cost.



Lead Antimony batteries have a higher self discharge rate of 2% to 10% per week compared with the 1% to 5% per month for Lead Calcium batteries.



Specifications of Maintenance free lead acid 12v 20Ah rechargeable electric motorcycle battery



Item Maintenance free lead acid 12v 20Ah rechargeable electric motorcycle battery
Code 6-DMZ-20
Color green
Type Lead acid battery
Dimension(±1mm)L*W*H

181*77*170mm

Approx. Weight(kg) 7KG
Seperator AGM
Norminal Voltage 12V
Capacity(Ah) 10hours 20Ah
Container ABS
Useage Motorcycle / Scooter /three Wheel Motorcycle
No. of plate 48
MOQ 500
Warranty 12 months



Lead acid battery advantages & disadvantages

Although lead acid batteries are widely used because they have a number of distinct advantages, they also have several major disadvantages. All these need to be considered when deciding upon whether to use this technology or not.



Lead Acid Battery Advantages



1, Mature technology

2, Relatively cheap to manufacture and buy (they provide the lowest cost per unit capacity for rechargeable cells)

3, Large current capability

4, Can be made for a variety of applications

5, Tolerant to abuse

6, Tolerant of overcharging

7, Wide range of sizes and specifications available

8, Many producers worldwide



Lead Acid Battery Disadvantages



1, Fails after a few years use lifespan typically 300 - 500 cycles

2, Cannot always be used in a variety of orientations

3, Corrosive electrolyte (can cause burns to people and corrosion on metalwork)

4, Lead is not environmentally friendly

5, Acid needs disposing of with care

6, Not suitable for fast charging

7, Must be stored in charged state once electrolyte introduced

8, Typical charging efficiency only around 70%



Our services



1. All battery prices based on lead(Pb) price.

2. MOQ(Minimum order quantity): 500pcs.

3. Payment Terms: 30% advance T/T and balance fax copy of B/L; Western Union, Money Gram, Paypal.

4. Customized design is available, OEM supported.

5. Sample or small order accept.

6. Delivery Time: 30 days after receiving 30% down payment.

7. Warranty: 12 months.



FAQ



Battery types we can offer: We have 6 types of batteries: conventional storage battery(dry-charged type), small sealed valve-regulated lead-acid battery(maintenance free) , small sealed valve-regulated lead-acid battery( semi-free maintenance battery), gel battery, generator battery, and power battery.



MOQ for our products: MOQ is the abbreviation of the Minnium Order Quantity and our company MOQ is 500 pieces for each model.



About OEM service: We can provide the OEM service, and the MOQ is 500 pieces for each models. We will try our best to meet every customer's needs.



About custom design color: The color can be customized according to your requirement.
