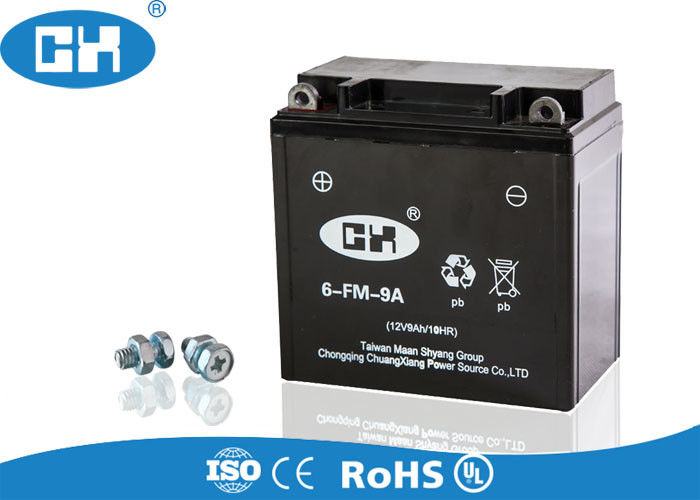

12 Volt Sealed Lead Acid Battery , Maintenance Free Vrla Lead Acid Battery

12 Volt Sealed Lead Acid Battery , Maintenance Free Vrla Lead Acid Battery

12 Volt Sealed Lead Acid Battery , Maintenance Free Vrla Lead Acid Battery
12 Volt Sealed Lead Acid Battery , Maintenance Free Vrla Lead Acid Battery

Large Image :  12 Volt Sealed Lead Acid Battery , Maintenance Free Vrla Lead Acid Battery Get Best Price

Product Details:

Place of Origin: Chongqing China
Brand Name: Chuangxiang
Certification: ISO9001 CE ROHS UL
Model Number: 6-FM-9L

Payment & Shipping Terms:

Minimum Order Quantity: 500
Packaging Details: One piece motorcycle battery packed in one color inner box, 10 boxes packed in one carton.
Delivery Time: 30-35 working days
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 300000pcs per month
Detailed Product Description
Type: Sealed Maintenance Free Battery Color: Black
Size: 149*85*106mm Voltage: 12v
Capacity: 9Ah Useage: Motorcycle / Scooter /three Wheel Motorcycle
Weight: 2.8/3.0kg Warranty: 12 Months
Certificate: ISO9001/CE/ROHS/UL MOQ: 500pcs
High Light:

valve regulated sealed lead acid battery

,

vrla lead acid battery

Details of Wholesale China manufacturer produce 12v 9Ah lead acid sealed motorcycle battery



Item Wholesale China manufacturer produce 12v 9Ah lead acid sealed motorcycle battery
Code 6-FM-9L
Color Black
Type Lead acid battery
Dimension(±1mm)L*W*H 149*85*106mm
Approx. Weight(kg) 2.8/3.0KG
Seperator AGM
Norminal Voltage 12V
Capacity(Ah) 10hours 9Ah
Container ABS
Useage Motorcycle / Scooter /three Wheel Motorcycle
No. of plate 48/54
  500
Warranty 12 months



Lead acid battery basics: how do they work



When looking at how a lead acid battery works, it is necessary to look at the basic components. The battery has comparatively few components - essentially there are four main elements:



Positive plate: This is covered with a paste of lead dioxide.



Negative plate: This is made of sponge lead.



Separator: This is an insulating material between the two plates, but it allows the electrolyte and the ions into it to enable conduction without the two plates touching.



Electrolyte: This consists of water and sulphuric acid



These constituents are all contained within a plastic container which acts to keep the electrolyte in and the battery together.



The overall battery will normally consist of several cells placed in series to give the required voltage as each cell is capable of providing an EMF of 2.1 volts.



In order to enable the basic lead acid cell to produce a voltage, it must first receive charge. The voltage applied to provide this must be greater than the 2.1 volts to enable current to flow into the cell. If it were less than this, charge would actually flow out of it.



Once charged, the cell or battery will be able to provide charge to external circuits, often operating over several hours dependent upon the drain on the cell or battery.



Advantage of Chuangxiang motorcycle battery



Plate: Adopt unique formula improving utilization of active material in plate, in addition, high pure lead ingot(#1 lead purity is 99.99%) as raw material, so high cold cranking performance and low self discharge rate.



Separator: Absorbed glass mat technology, superior ability of absorbing acid contributes to eliminate acid spill.



Terminal: High integrity of terminal sealing avoids acid leak, lead or copper terminal for choose.



Container: Reinforced ABS container great performance-resistance to gasoline and alcohol gasoline. Integrity of ABS container can resist the leak of gas and acid during the process of use-age, it is environmental.



Quality control: All material must be strictly inspected before use, each process is strictly implemented by standard operation procedure, each product must be inspected before delivery to assure high quality product to client.



Valve Regulated Lead Acid (VRLA) Batteries

Also called Sealed Lead Acid (SLA) batteries.



This construction is designed to prevent electrolyte loss through evaporation, spillage and gassing and this in turn prolongs the life of the battery and eases maintenance. Instead of simple vent caps on the cells to let gas escape, VRLA have pressure valves that open only under extreme conditions. Valve-regulated batteries also need an electrolyte design that reduces gassing by impeding the release to the atmosphere of the oxygen and hydrogen generated by the galvanic action of the battery during charging. This usually involves a catalyst that causes the hydrogen and oxygen to recombine into water and is called a recombinant system. Because spillage of the acid electrolyte is eliminated the batteries are also safer.
